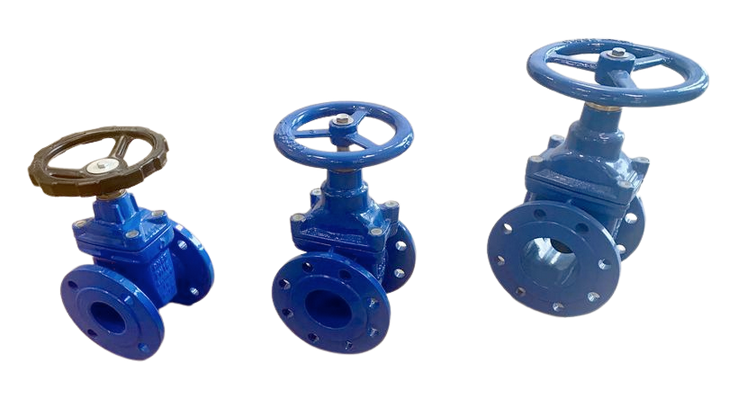

DI flanged resilient seated gate valve for water supply
The gate valve is a material used to control, modify or even stop the flow of a certain liquid such as potable water. It can operate as well in an open canal as on a domestic pipe in a closed environment. The direct passage of this valve allows a full passage of the fluid, with a low pressure drop when it is in open position. On the other hand, when the gate valve is in the closed position, this product guarantees total tightness.
We offer this type of equipment in more than 30 countries on the African continent, such as Ivory Coast and Chad.
Characteristics of the gate valve
| Body: | Cast iron or stainless steel |
| Capsule | Elastomer or steel according to PN |
| Coating: | Epoxy |
| Version : | Flanges |
| DN : | We offer a wide range from DN 40 to DN 1000. |
| PFA : | PN 10 - 16 - 25 and 40 bar |
| pattern | short or long |
| Closing direction : | Clockwise Closing (FSH) or Anti-Clockwise Closing (FAH) |
| Manoeuvrability : | A square manoeuvring square, with steering wheel, with an electric or pneumatic actuator on request |
Complies with current European standards.
Complies with EN 1074 -1 and 2.
NF mark and drinking water approval.
We also have a wide range of accessories for gate valves:
- Opening/closing indicator
- With rising outer stem
- Stationary extension
- Manoeuvring column
- Mouthpiece head with key
- Keyhole tube
- Tabernacle
Contact us for more information or a technical quotation!
