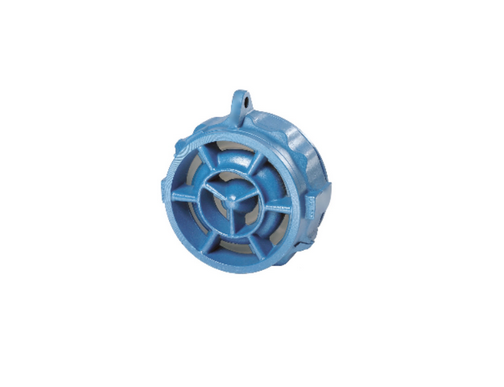

CLASAR Type Low Inertia Check Valve

Axial Disc Low Inertia Check Valve
Low inertia axial disc non-return valve

Available flanged or wafer type (to be installed between flanges) PN 10 / PN 16.
Can be installed vertically, horizontally, or diagonally.

Description

• Material: Body made of EN-GJS 400-15 ductile iron
• Coating: Blue epoxy paint
• Installation: Vertical, horizontal, or diagonal
• Performance:
• Easy maintenance
• Silent operation
• Low head loss
• Compliant with international standards

Technical Characteristics

• Size range: DN 80 to DN 1800 (other diameters on request)
• Wafer type: up to DN 500
• Flanged type: from DN 600
• Maximum allowable pressure (PMA): 50 bar
• Operating temperature: −10 °C to +130 °Cv

Applications

• Drinking water supply networks (AEP)
• Irrigation networks
• Wastewater / sewer networks
• Pumping stations

Configurations

• Type 1: Wafer type – DN 150
• Type 2: Wafer type – DN 200 to DN 500
• Type 3: Flanged type – from DN 600

Contact us for more information or a technical quote!
