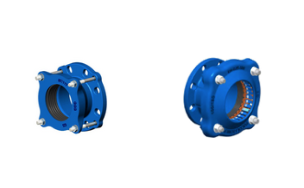

Wide Tolerance Ductile Iron Flange Adaptor

Wide Tolerance Ductile Iron Flange Adaptor

Wide Tolerance Ductile Iron Flange Adaptor

Description

Body material: Ductile iron EN GJS-500-7
Coating: Blue epoxy coating 250 μm
Sealing: Fully guaranteed watertight sealing
Compliance with international standards: ISO 2531 / ISO 7005-2 / ISO 7483

Specifications

Range: DN 50 to DN 600 (other diameters available on request)
Flange connection: PN 10 and PN 16 (PN 25 available upon request)
PFA (Allowable Operating Pressure): 16 bar
Operating temperature: –20°C to +60°C

Applications

Drinking water supply networks (potable water systems)
Distribution networks
Fire protection networks

Contact us for more information or a technical quotation!
