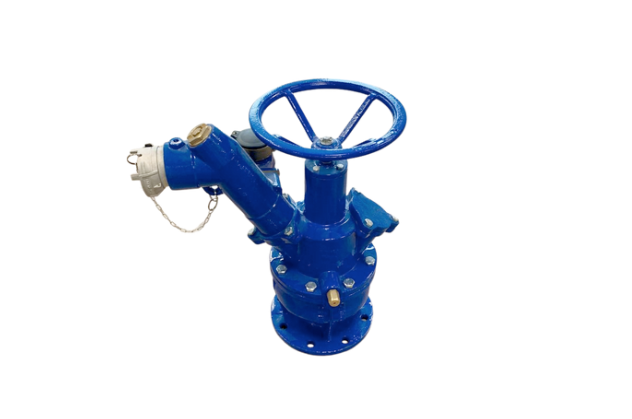

Irrigation hydrants for agriculture
An irrigation hydrant is a key element of the irrigation network. It is the point of distribution of water from pressurized collective networks.
In general, the irrigation hydrant provides the following functions:
- Establish or interrupt the water supply without water hammer.
- Ensure the connection of irrigation equipment
- Counting distributed volumes
- Regulating the downstream pressure
- Limiting the flow of water intakes
Interhydro offers irrigation kiosks by intervening on several projects such as in Rwanda.
Characteristics of the irrigation hydrant
There are several types of irrigation hydrants available in long or short body models :
| Type | DN Inlet | No. x DN Outlet |
| Α2 | 80-100-125-150-200 | 2 x DN 65 |
| Α4 | 80-100-125-150-200 | 4 x DN 65 |
| Β2 | 80-100-125-150-200 | 2 x DN 100 |
| C | 80-100-125-150-200 | 1 x DN 100 |
| 1 x DN 150 | ||
| 4 x DN 80 | ||
| 4 x DN 100 |
-
Construction: Ductile cast iron 40 EN 1563
-
Coating: Epoxy powder 150 microns DIN 30677
-
Nominal pressure: 10, 16 or 25 bar
Contact us for more information or a technical quote!
