Butterfly valve with single eccentricity: Flanged; Type WAFER or LUG
Totally waterproof, compact design, easy to use.
These are the three benefits of the single eccentric butterfly valve. They can be flanged, as well as WAFER or LUG type, which are to be inserted between flanges.
These types of butterfly valves can be used on a distribution network, on an irrigation pipe but also during the treatment of waste water.
Easy to use thanks to a control sleeve, it will allow you to quickly cut a pipe. We talk about an operating sleeve, but we can of course use a reducer and its handwheel, as well as a pneumatic actuator for a single eccentric butterfly valve.

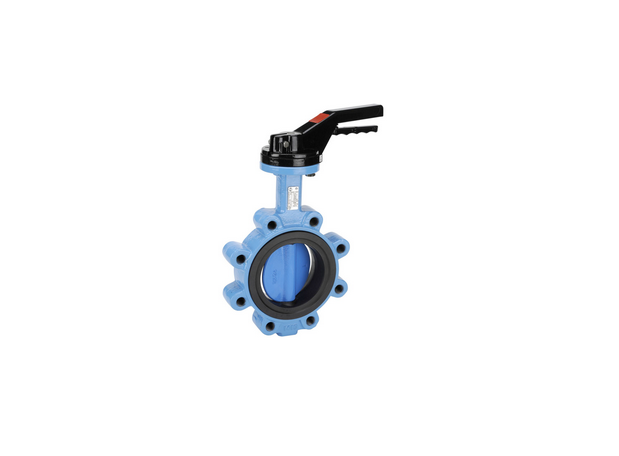

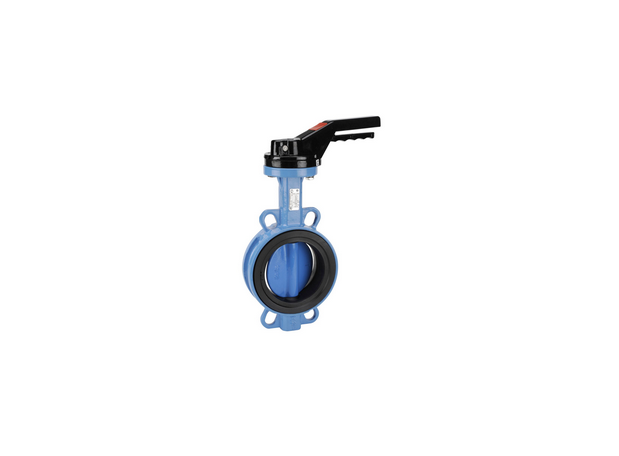

Interhydro has been working with you for more than 30 years in the field of drinking water supply for all your projects. For example, we regularly offer butterfly valves Type WAFER (with centering lugs) and Type LUG (with threaded lugs) for projects in Benin or Congo in Africa.
Characteristics of the single eccentric butterfly valve
| Coating: | Epoxy. |
| Range : | Flanged, to be inserted type WAFER (centering lug) or to be inserted type LUG (threaded lug). |
| DN : | 32/40 à 1000. |
| PFA : | 10 - 16 - 25 bar. |
| Manoeuvrability : | With operating lever, with gearbox and handwheel, with electric or pneumatic actuator on request. |
Complies with current European standards.
Drinking water approval.
We also have a wide range of accessories for butterfly valves:
- Opening/closing indicator
- With rising outer stem
- Stationary extension
- Manoeuvring column
- Mouthpiece head with key
- Keyhole tube
- Tabernacle
Contact us for more information or a technical quote!
